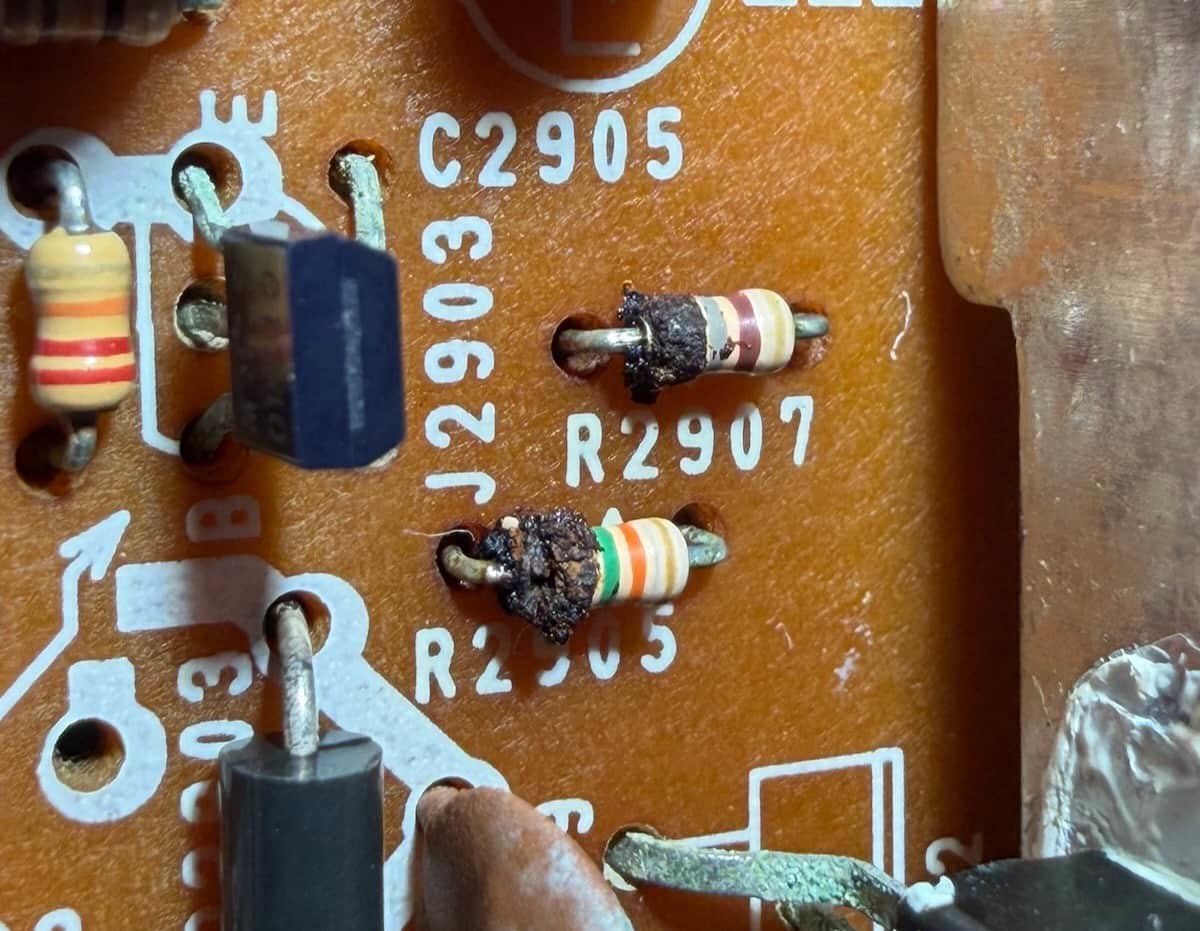

Could anyone (perhaps @Die_Bogener) confirm the resistors on PCB62 from a VX5000?  Several of mine have corroded so that the first band is not visible:
https://forum.beoworld.org/wp-content/uploads/sites/3/2026/02/vx5000-pcb62.jpeg"> src="/api/files/7830861e68494c4d99298e57dd1207a0" alt="" />

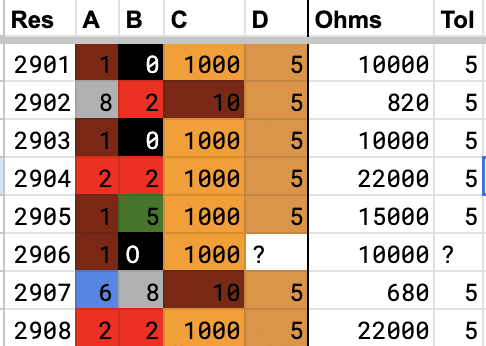

If I'm reading the Service Manual correctly, I have deduced:
This is a North American VX5000, but it appears PCB62 is just responsible for 12v/5v so I suspect it's the same as the Euro version...
Thanks!
