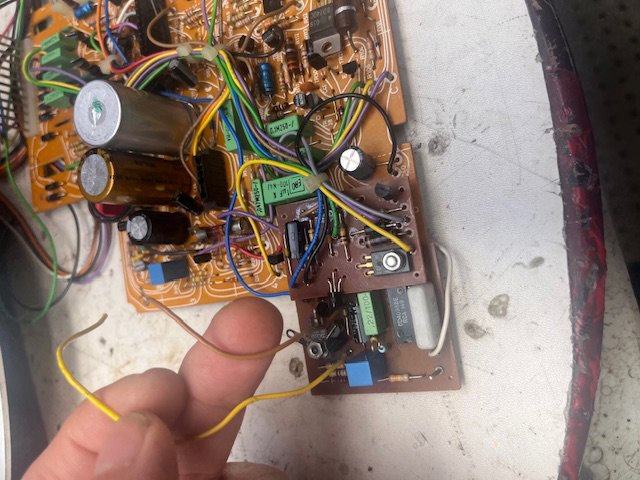

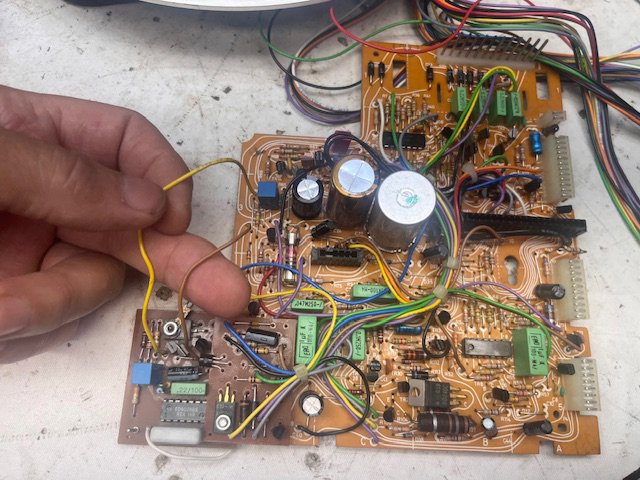

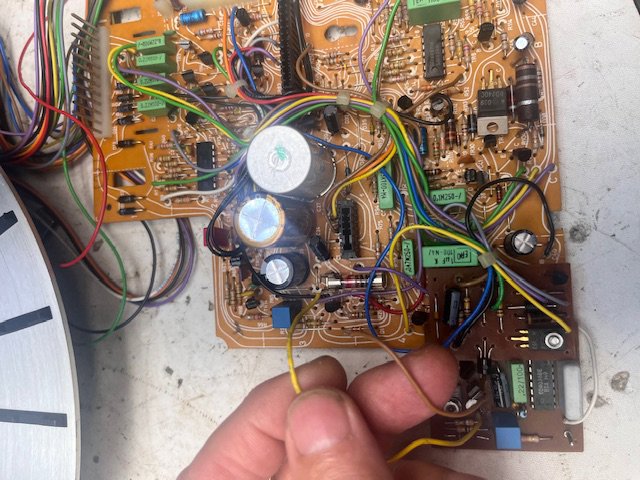

Hi everyone, I just joined the forum. I am trying to fix Beogram 8000 model 5613 and need help. I recapped it but accidentally disconnected two wires coming from one of the two additional small boards. These boards are not shown in schematic that I have.I need to reconnect brown and yellow wire coming from bigger of two additional boards to the main board. Can someone help please.See attached pictures
Thank you to our Sponsors
Beogram 8000 model 5613 HELP needed
3 replies

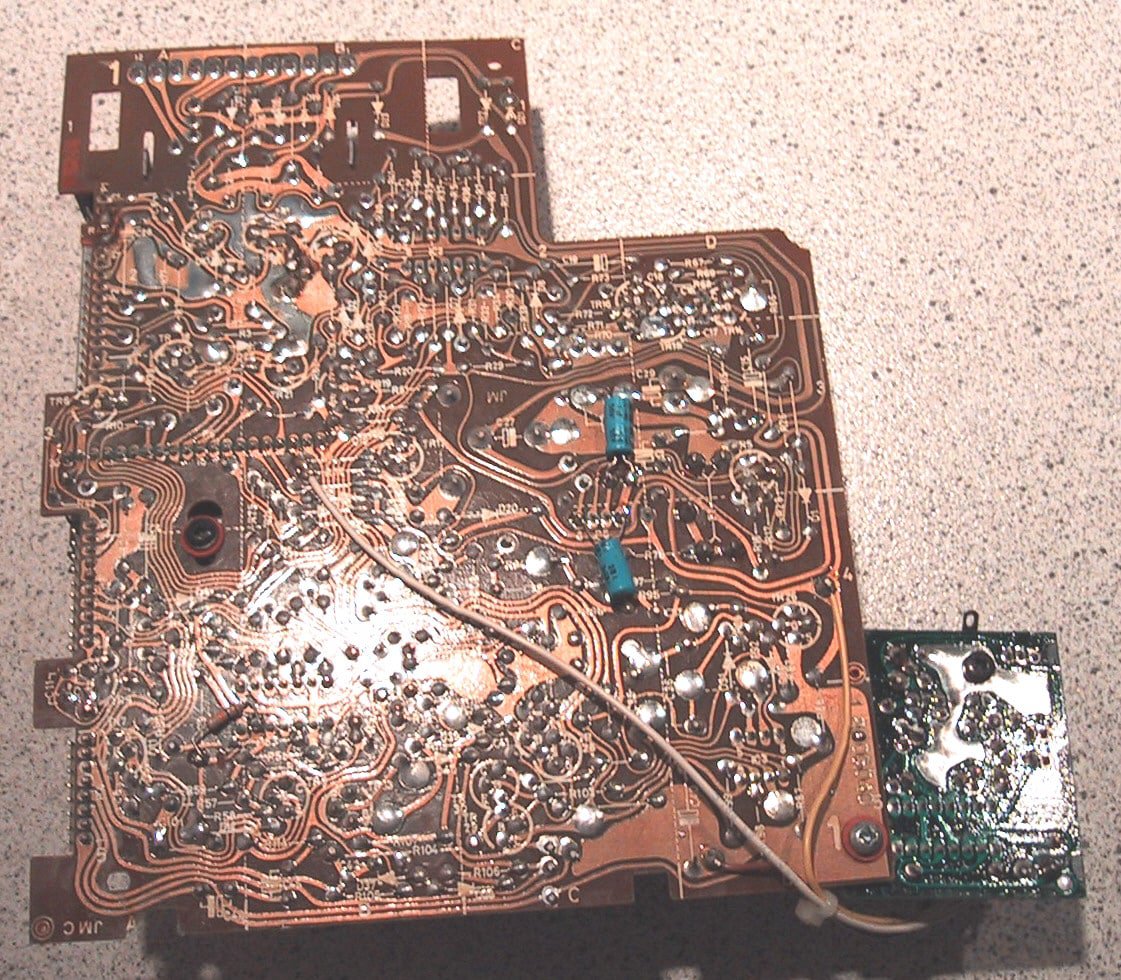

They go at the back. Sorry about the bad lighting, but I think you can see it.
Martin
Thank you very much!
