Opening Up a Beocom 2 Base

5 replies
I've got a Beocom 2 desktop charging base where the connections, the bit inside the hollow where the phone sits, has cracked and sits too low so the contact is not made. It looks like it would be easily glued, but to do that I need to open it up, and I can't figure out how to do that!   I've tried to jimmy it open but the bottom won't come off, and I'm afraid if I push too hard I'll only cause further damage.  I can't see any obvious clips or screws that are holding it in place

Location: Liverpool

My B&O Icons:

BeoCenter-9500.png BeoCenter-9500.png
Beoremote-Beo4.png Beoremote-Beo4.png
Beovox.png Beovox.png
Beovision-11.png Beovision-11.png
Beotime.png Beotime.png
Beosound.png Beosound.png
Beosound-Moment.png Beosound-Moment.png
Beosound-9000.png Beosound-9000.png
Beosound-5.png Beosound-5.png
Beosound-4.png Beosound-4.png
Beoremote-One.png Beoremote-One.png
Beoplay-Portal.png Beoplay-Portal.png
Beoplay-EX.png Beoplay-EX.png
Beoplay-Earset.png Beoplay-Earset.png
Beoplay-A2.png Beoplay-A2.png
Beogram-400x.png Beogram-400x.png
Old enough to have gazed at classic B&O HiFi in Plumbs shop windows in the 80s...

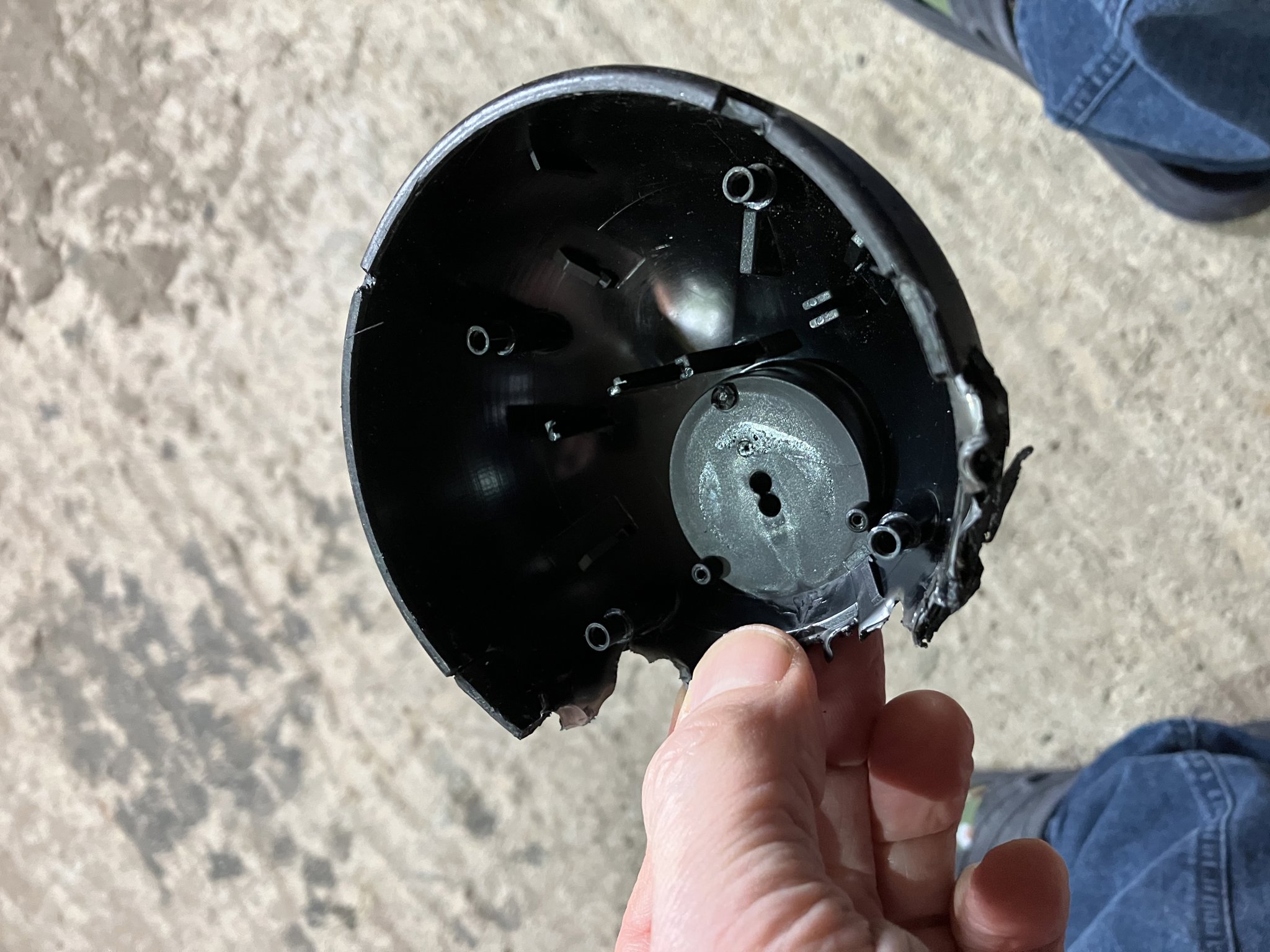

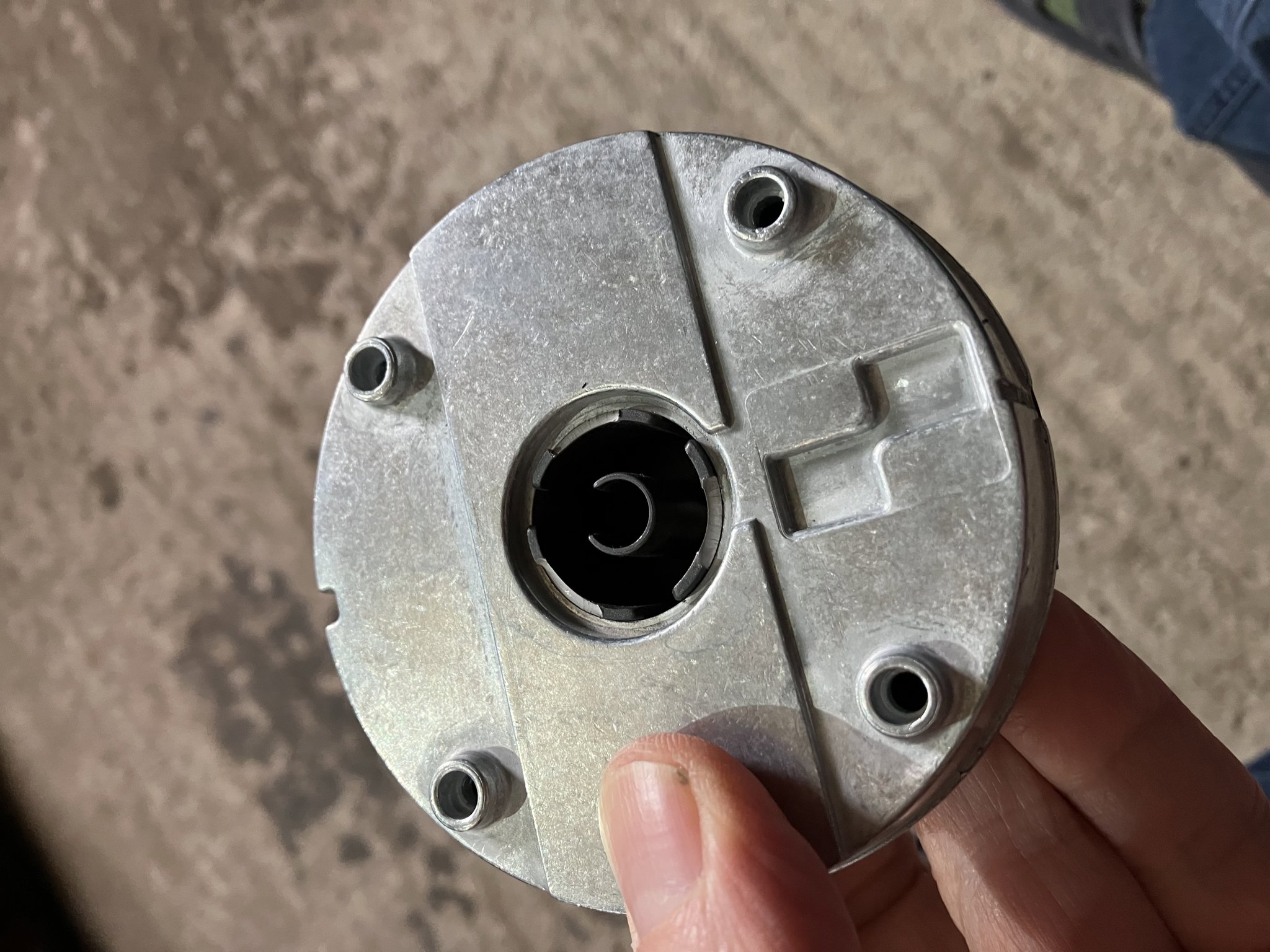

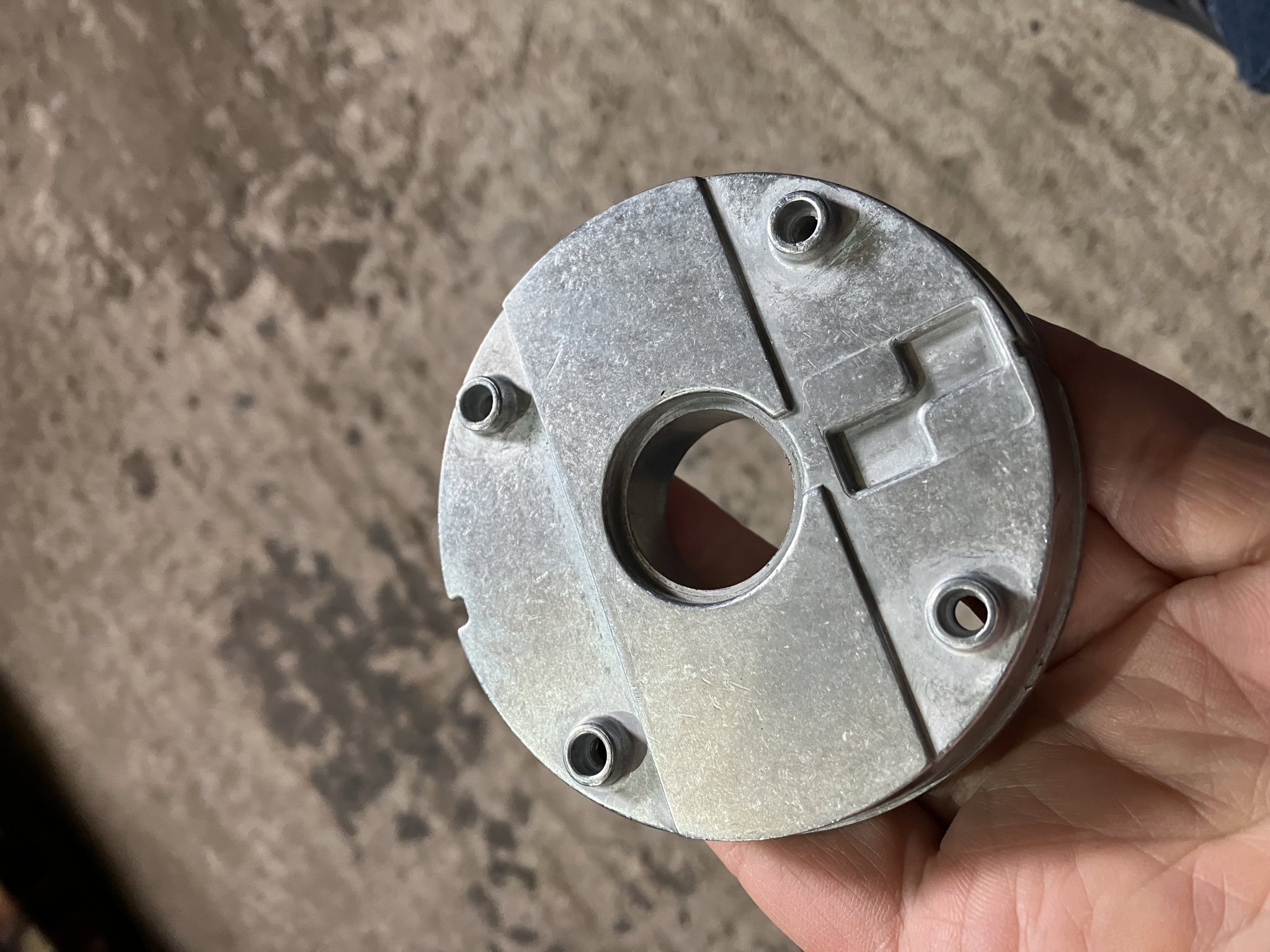

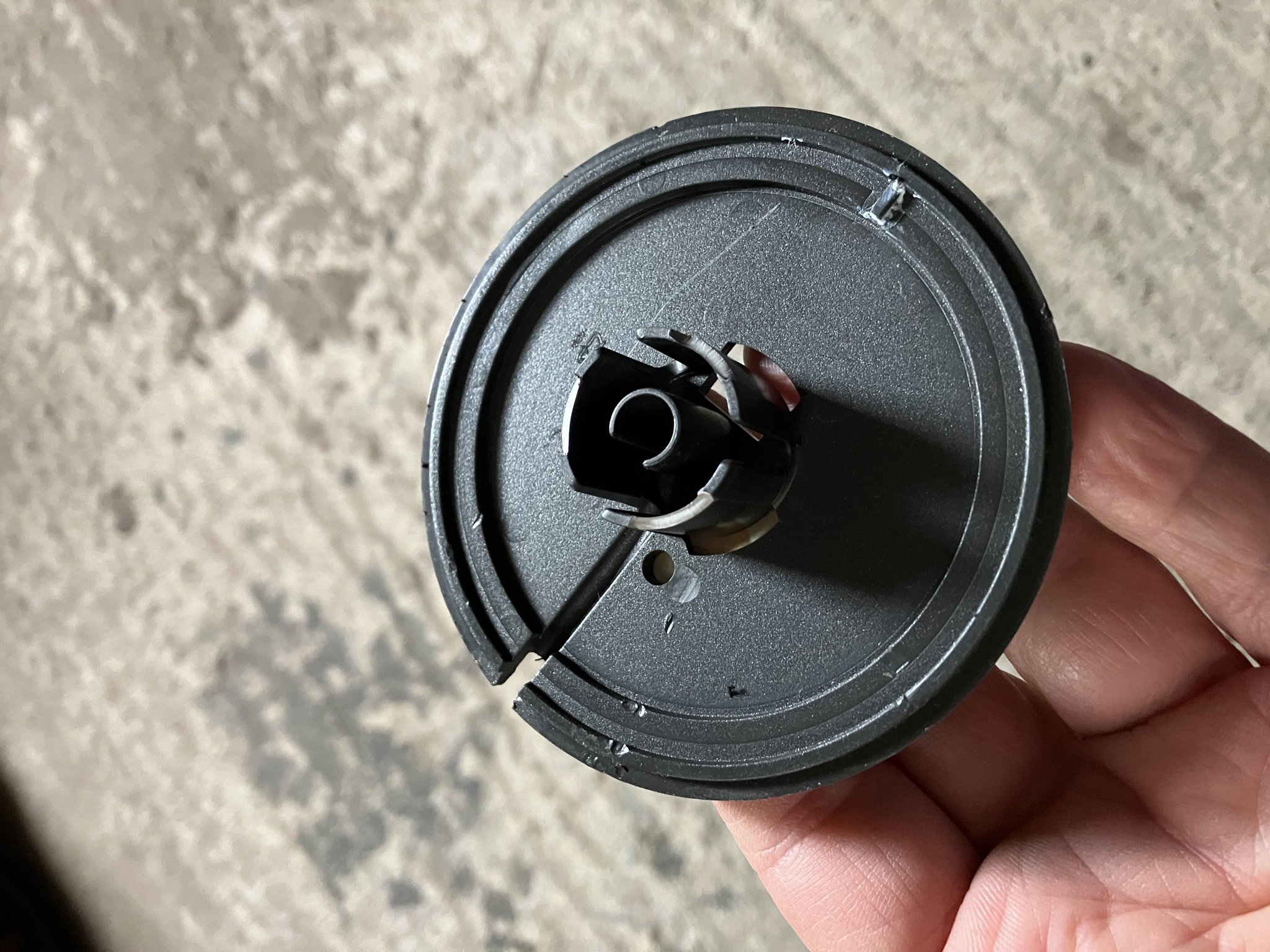

Luckily, when I destroyed mine I took some photos:
From the bottom, I think if you slide something very thin up between the plastic tab and the metal weight, you may be able to unclip the three plastic base tabs inwards so that they release out of the weight, thus exposing the screws that enable you to proceed further.

Location: Warwickshire, UK

My B&O Icons:

BeoCenter-9500.png BeoCenter-9500.png
Beoremote-Beo4.png Beoremote-Beo4.png
Beovision-10.png Beovision-10.png
Beotime.png Beotime.png
Beosound.png Beosound.png
Beosound-Explore.png Beosound-Explore.png
Beosound-Essence.png Beosound-Essence.png
Beoplay-P2.png Beoplay-P2.png
Beoplay-M3.png Beoplay-M3.png
Beoplay-H4.png Beoplay-H4.png
Beoplay-H3.png Beoplay-H3.png
Beoplay-Form-2i.png Beoplay-Form-2i.png
Beoplay-Earset.png Beoplay-Earset.png
Beoplay-A2.png Beoplay-A2.png

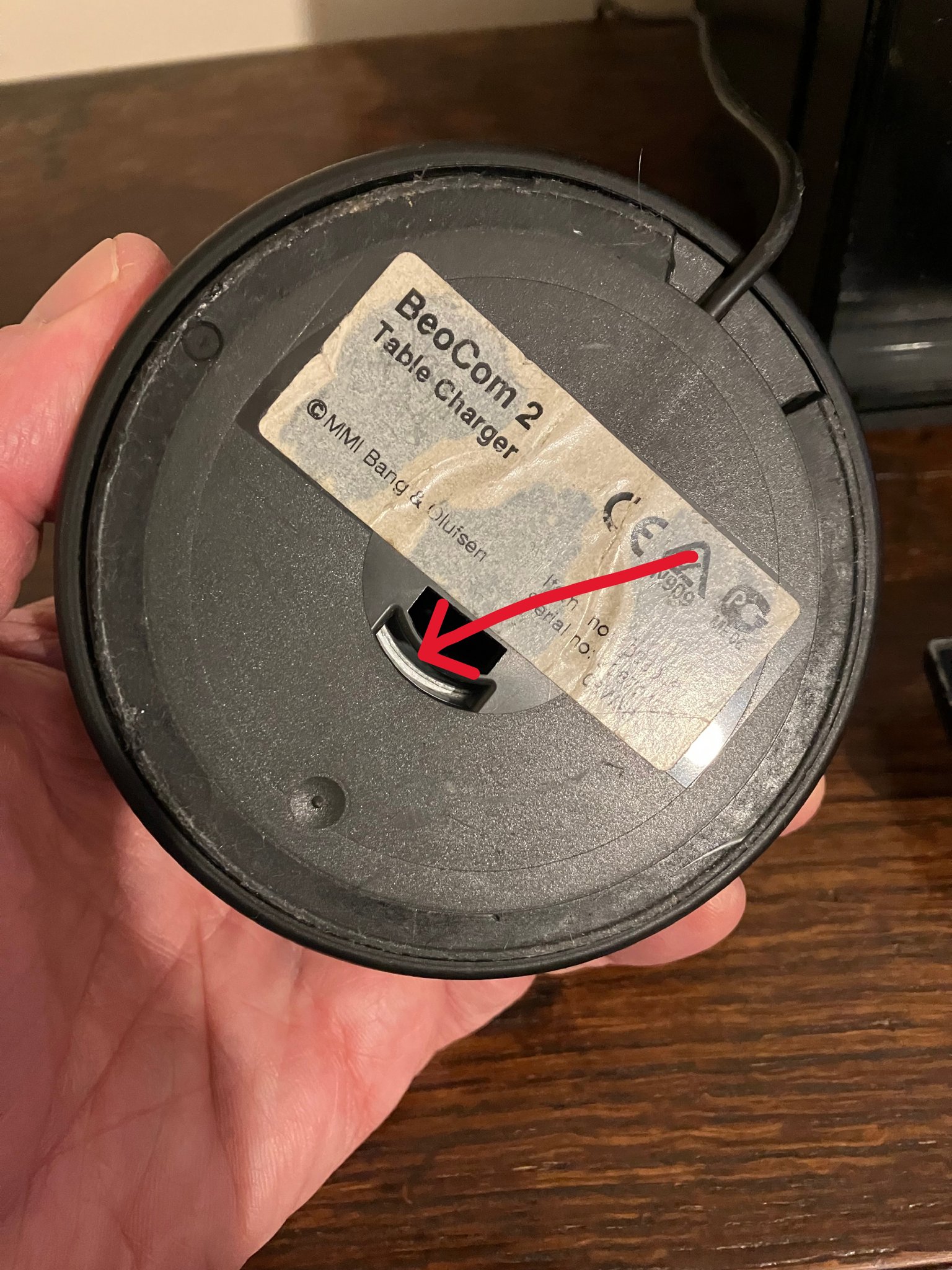

Here's my intact one to help explain.
I think inserting something very thin into each of the three gaps (arrowed) between plastic clips and metal weight should release the base.  Maybe cut up a bank card?

Location: Warwickshire, UK

My B&O Icons:

BeoCenter-9500.png BeoCenter-9500.png
Beoremote-Beo4.png Beoremote-Beo4.png
Beovision-10.png Beovision-10.png
Beotime.png Beotime.png
Beosound.png Beosound.png
Beosound-Explore.png Beosound-Explore.png
Beosound-Essence.png Beosound-Essence.png
Beoplay-P2.png Beoplay-P2.png
Beoplay-M3.png Beoplay-M3.png
Beoplay-H4.png Beoplay-H4.png
Beoplay-H3.png Beoplay-H3.png
Beoplay-Form-2i.png Beoplay-Form-2i.png
Beoplay-Earset.png Beoplay-Earset.png
Beoplay-A2.png Beoplay-A2.png
Thanks Guy, had a feeling it would be that but didn't want to risk it. Happy to say I got the bottom off, used some plastic glue to fix the break, reassembled, and it's working. It's looking a bit worn as these bases often do, but at least it's working.
