Hello, i have cd5500 that now have stopped playing cd,s. spinning and laser is seaching and then stops. Weak light from laser. any ide,s. Recap all cap,s is one ide i have read about on net some time ago.
Magnar.Norway.
Thank you to our Sponsors
BEOGRAM CD 5500 STOPPED PLAYING CD
11 replies
You would have to replace the blue Phillips capacitor C2108 and then your 5500 are playing again, that is a common problem on most CD players.
you can buy the kit here:
https://www.beoparts-shop.com/product/capacitor-kit-for-cdm-disc-drive-servo-beogram-cd-beocenter/

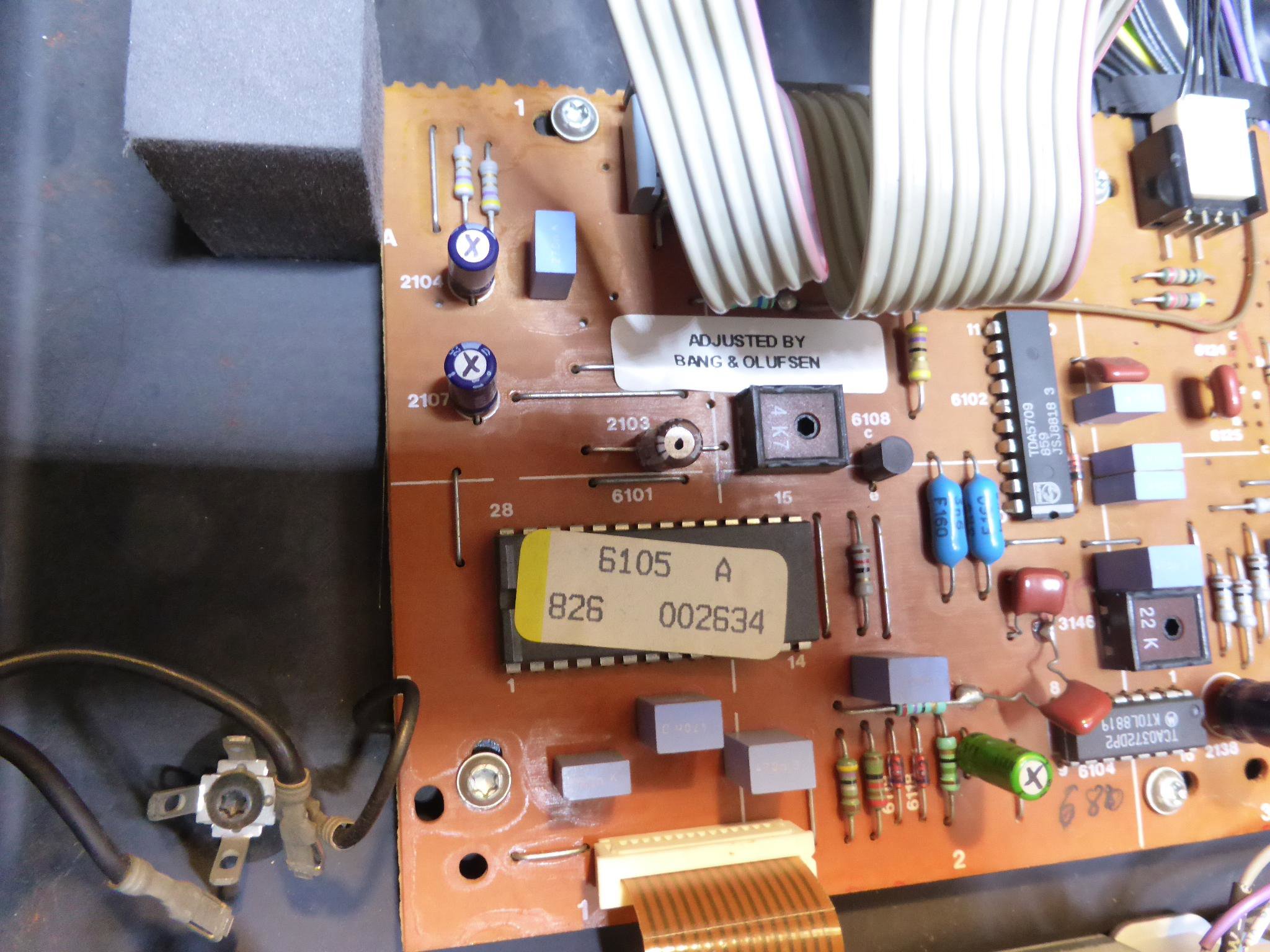

It's C2103. Indeed it's the blue one to the left of the microprocessor on the above board. A very simple capacitor to change, as long as you get the right one :)
Location: Copenhagen
Its a axial 33µF 16V Capacitor. I just exchaned it on a Beogram CD7000:
Old:
Login to view image
New:
Login to view image
I used a radial 33µF 25V one. It worked like a dream.
Could be that the laser reach the end. Or laser current must be corrected ( don’t do if you are not familiar, you would kill the laser from overcurrent)
Changed all elktrolytte capasitors. Got a kit from Beoparts. Problem solved. AS NEW.
Excellent, and well done. ☺️?
Jacques
Any further details you can supply of the 'simple' change would be most appreciated for the non-electronic electorate amongst us, video, images would be fantastic
Thanks
Location: England
Login to view image New: Login to view image I used a radial 33µF 25V one. It worked like a dream.indeed. i read somewhere that you need to take a normal high esr elco, a low esr elco does not work there ...
Hi,
Can I check which make of capacitor you used for this fix, Panasonic, Vishay etc. Are you able to share a close up image of the actual capacitor you used?
Thank you
