Re-installing dustcap for Beogram RX2
3 replies
Hi,
I had some problems with the adjustment of the turntable, so I took the dustcover off...
Now I am having problems putting it back on. Wished I had not taken it off...

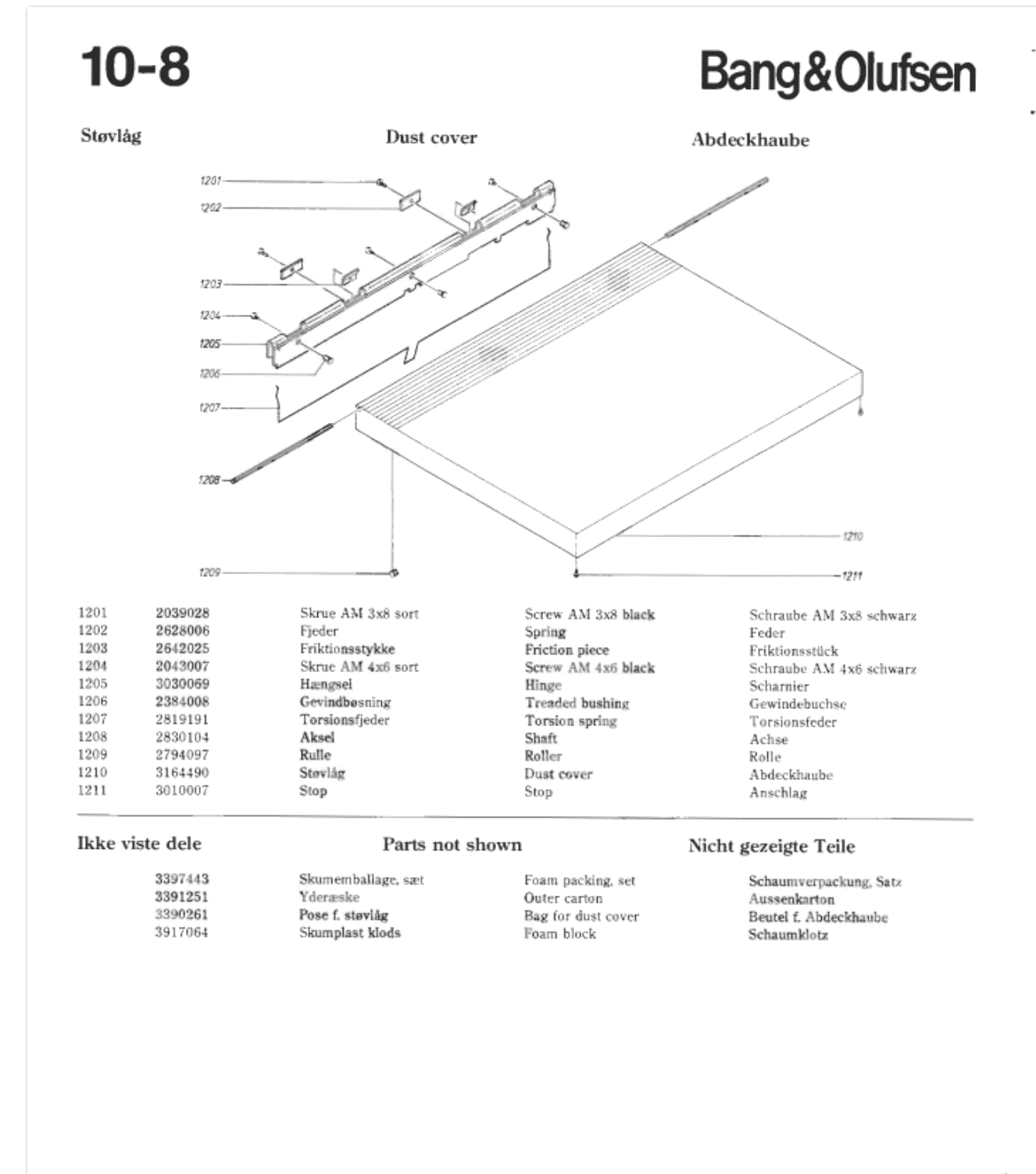

Can anyone tell me how the two brackets 1203 must be placed? Over or under 1207 the metal spring? Tried several but when I put them under I cannot get the cover back in place.
I think it should fit in the holes but unfortunately that is not enough. Tried chatgpt but not helpful enough.
Been busy all day with this.
A drawing would be great....

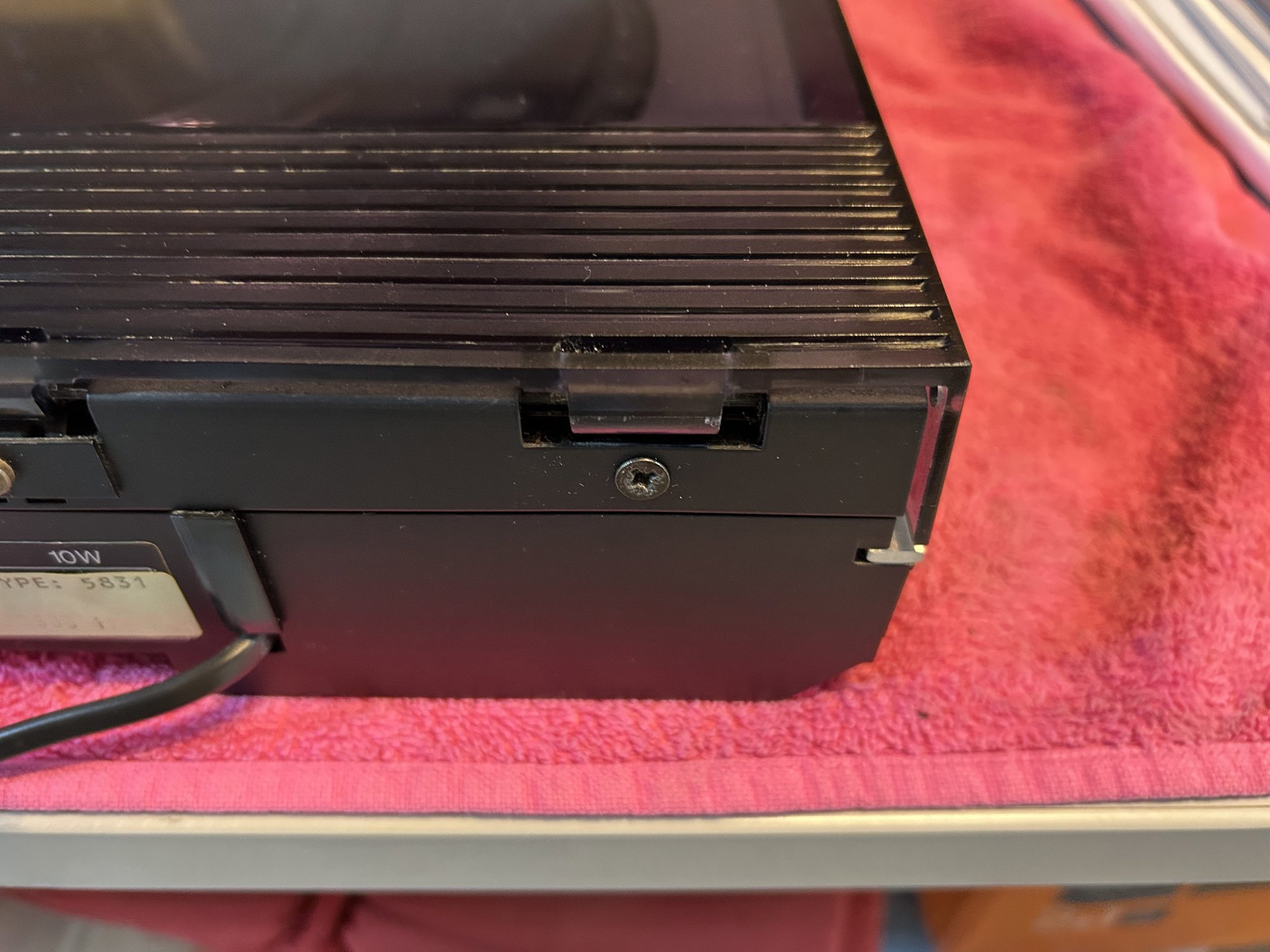

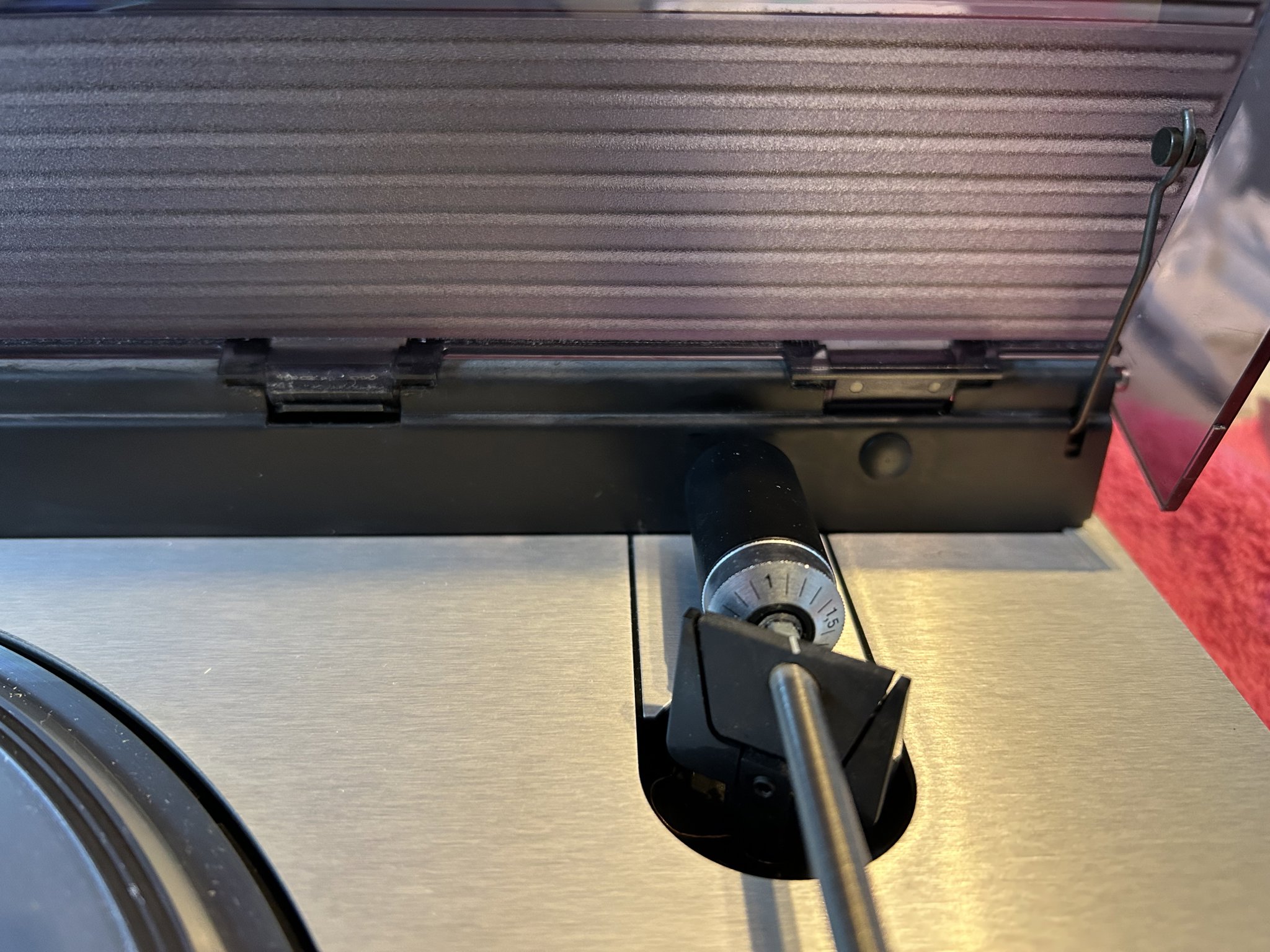

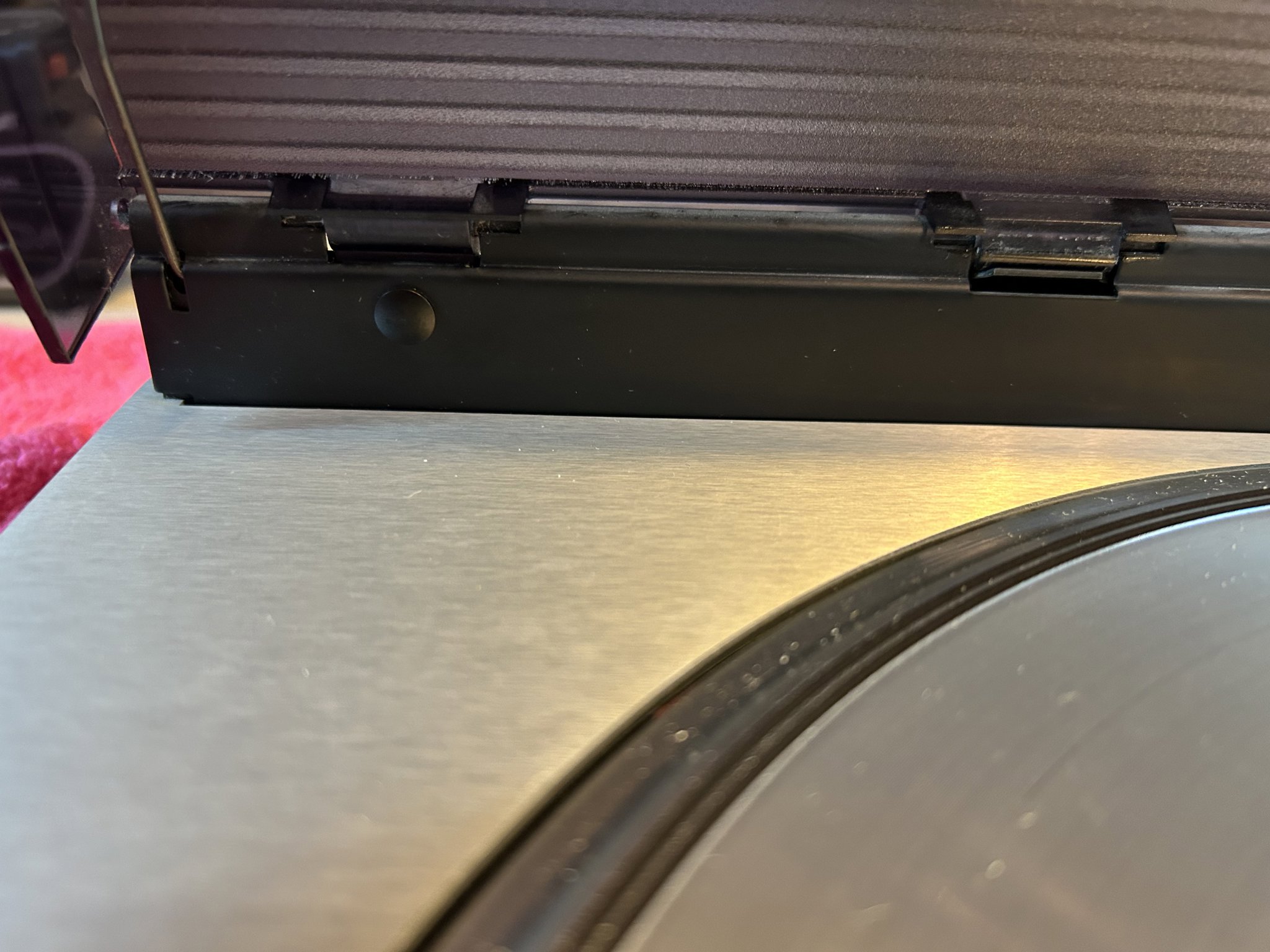

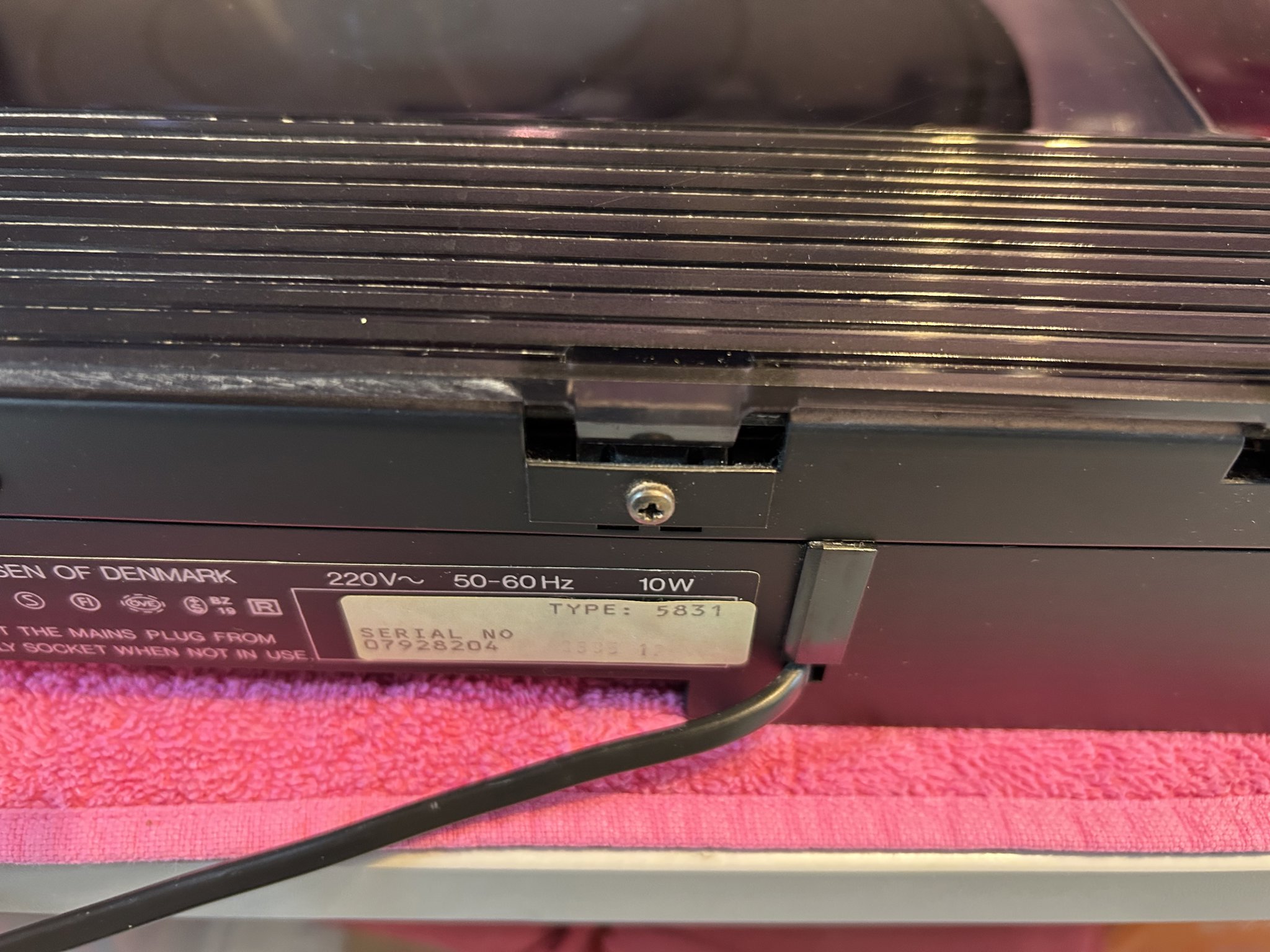

I have an RX2 and will look at it this weekend. I will make a picture of the mounting, if this helps?
Kind regards,
Rolf
