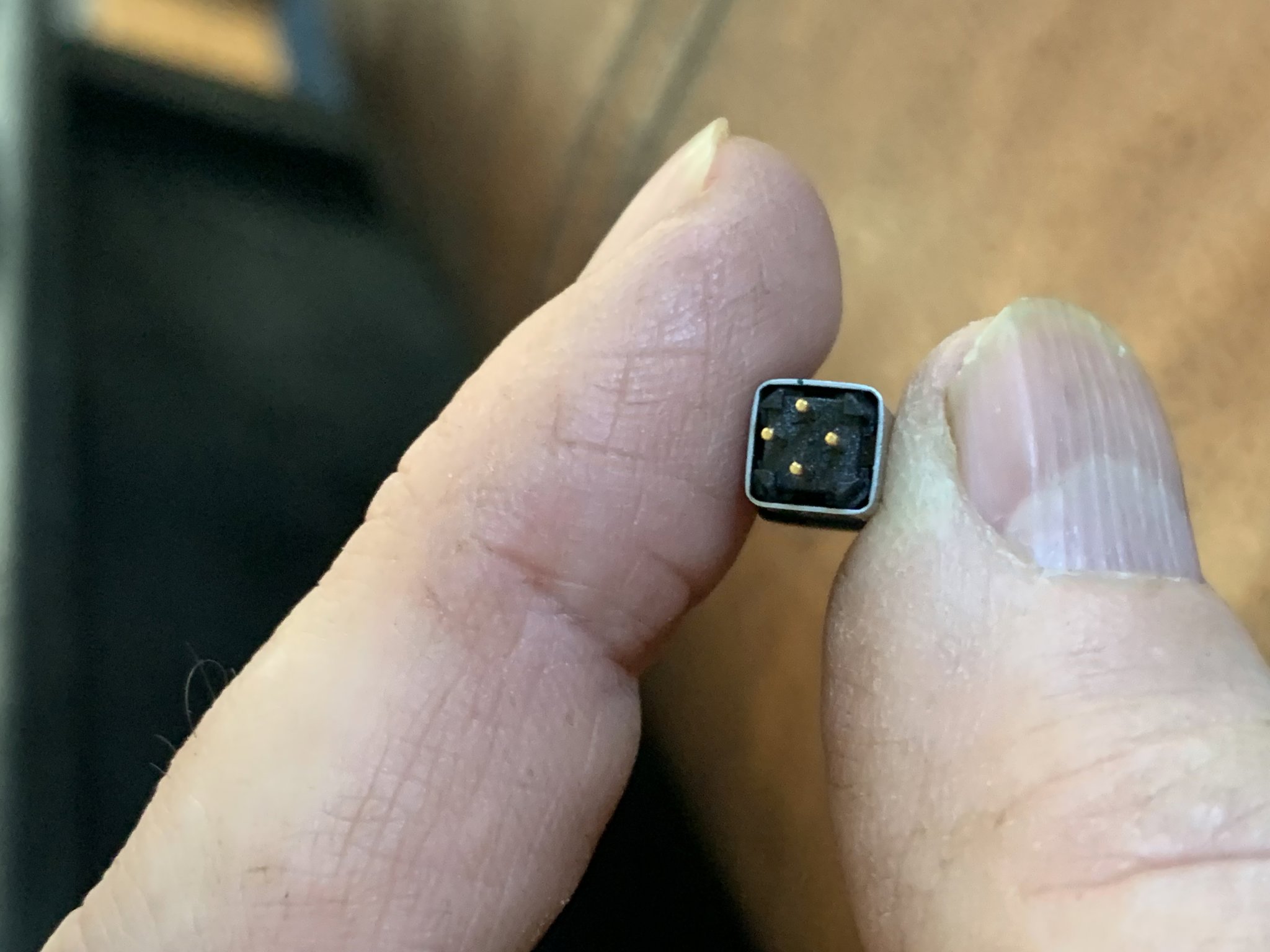

I am replacing an RX2 arm and need to know the wiring at the end of the turntable. I know what the wiring is for standard 2 x 2 configuration with + on the top, grounds on the bottom. The end of the RX2 is a 2 x 2 configuration, but the orientation is diamond shape. I added a picture of the pins on the MMC5 cartridge. With an ohm meter, the opposing pins are ground and + for each coil. Can someone tell me which pins are R L RG and LG. Thank-you.
RX2 MMC5 tonearm cartridge wiring?
2 replies
Here you go:
