Djmp" target="_blank">https://forum.beoworld.org/forums/topic/beolink-nl-ml-converter-question/#post-69465">Djmp wrote:

Hi, I have  Beosound 9000 connected to a BeoVision 11 via an NL/ML converter, all in the same room. Only the TV has speakers. I can select link->CD on the TV and play CDs and use the Beoremote remote to control the 9000. Question is: with the TV off, and I start CD playback from the 9000 directly (via a button), can I have the TV turn on to provide the speakers? Seems like this should work.

Not possible to my knowledge! And somehow understandable. Because in principle the ML side doesn't know which "Master" it should start and on the NL-side there is no "Master". Presumably this could be overcome by reprogramming the BLC. Though the last BLC update date published is from December 2015!  So I would say low/no chance! Still I checked this morning. Pushing a start CD button didn't result in playback of this cd on the BS Shape (the BS9000 BLC is primary linked).

I got this functionality working with a Beocenter 9300 - 1611 converter - NL/ML converter -Beoplay V1 where I could activate the Beoplay V1 with a press on one of the buttons on the BC9300. It was discussed in this thread https://forum.beoworld.org/forums/topic/beolab-3500-and-1611-converter-settings/page/24/" target="_blank">https://forum.beoworld.org/forums/topic/beolab-3500-and-1611-converter-settings/page/24/">https://forum.beoworld.org/forums/topic/beolab-3500-and-1611-converter-settings/page/24/ where the goal was to find out if the same functionality could be had with a MCL2AV with a connected Beogram. The thread might be a littl messy, but I know I had it working. I don't know if the Beosound 9000 does have any limitations in this regard, but in theory it should work. My NL/ML converter is the latest software version.

Djmp" target="_blank">https://forum.beoworld.org/forums/topic/beolink-nl-ml-converter-question/#post-69465">Djmp wrote:

I can select link->CD on the TV and play CDs and use the Beoremote remote to control the 9000.

I am wondering why you would have to press link - CD. It should be possible to assign the CD source on the BV11 to the CD player on the Beosound 9000 if they are setup as linked products

Madskp" target="_blank">https://forum.beoworld.org/forums/reply/69475/#post-69475">Madskp wrote:

I got this functionality working with a Beocenter 9300 – 1611 converter – NL/ML converter -Beoplay V1 where I could activate the Beoplay V1 with a press on one of the buttons on the BC9300. It was discussed in this thread https://forum.beoworld.org/forums/topic/beolab-3500-and-1611-converter-settings/page/24/ where the goal was to find out if the same functionality could be had with a MCL2AV with a connected Beogram. The thread might be a littl messy, but I know I had it working.

Perhaps the Powerlink connection (and specifically the 'speaker on' signal) helped in this situation.  I seem to remember that the Configuration Tool mentions that a PL connection to the BL1611 is required for audio 'front panel volume control' in such a setup.  When using just an ML connection there is no 'speaker on' signal that I am aware of, but you would think that the 'data' connection would cover this requirement.

Guy" target="_blank">https://forum.beoworld.org/forums/reply/69477/#post-69477">Guy wrote:

When using just an ML connection there is no ‘speaker on’ signal that I am aware of, but you would think that the ‘data’ connection would cover this requirement.

I have not tried this with a Masterlink music system, so agree that it could function in another way. I can try to do a test later thisweek with my BS Ouverture and/or my Beocenter 2 to see if they can activate the Beoplay V1 via the NL/ML converter

info: BS3000 - BLC -  NL : start cd with button on BS3000 - NL source doesn't start BS9000 - BLC -  NL : start cd with button on BS9000 - NL source doesn't start BS7000 - BLC -  NL : start cd with button on BG CD7000 - NL source doesn't start this evening (but I'm not sure this was the same before I powered everything down this afternoon, but forgot the Beosystem 7000 and the T1611 (which I restarted later on)) I will do a proper reset lateron.

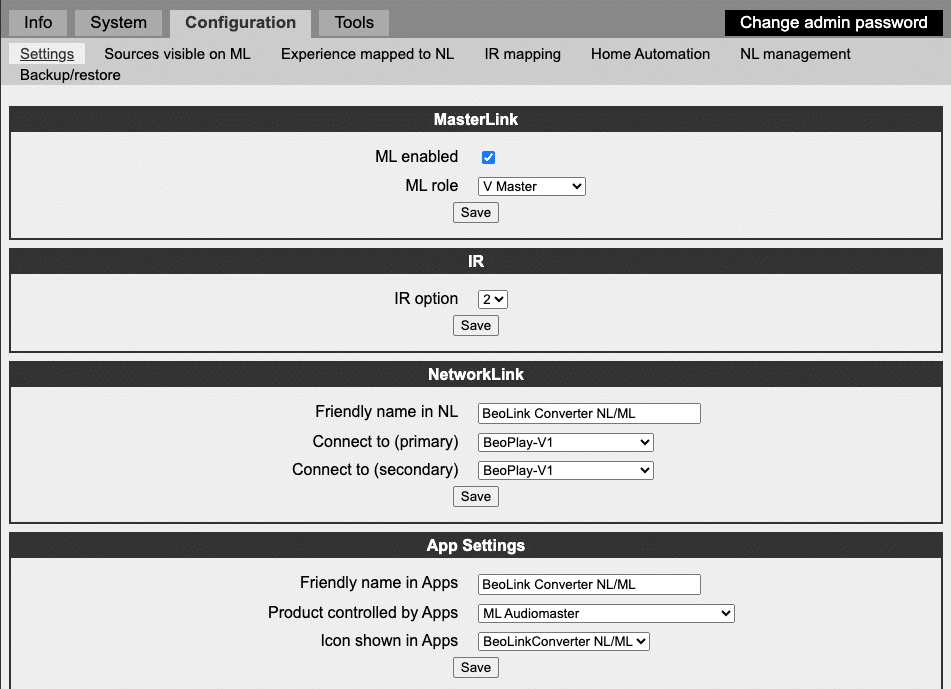

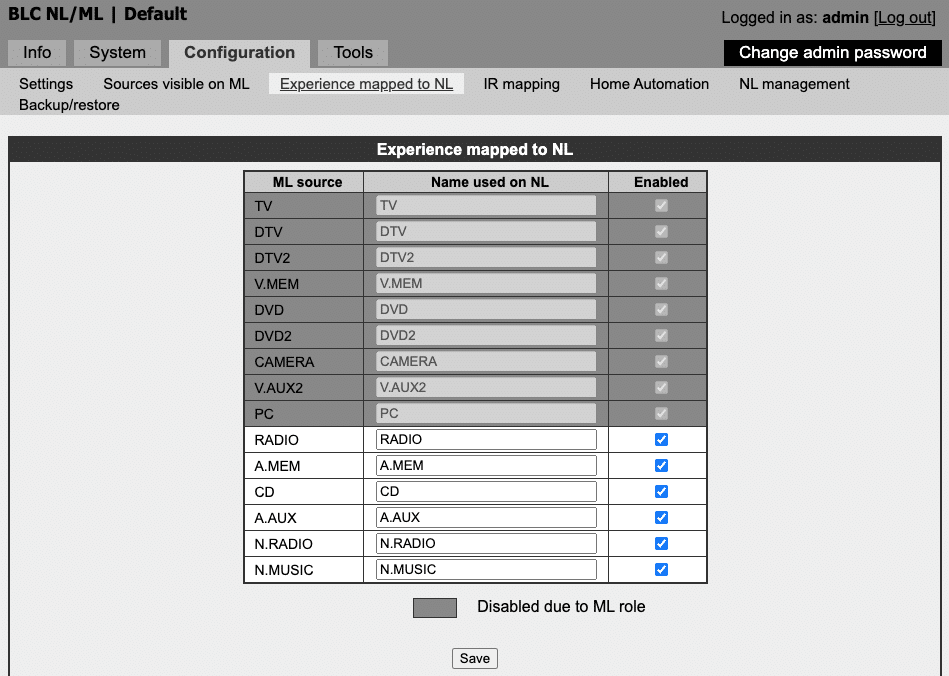

I have just tried now with Besound Ouverture (A.opt. 0) - NL/ML converter - Beoplay V1 (V.opt. 2) The setup of the NL/ML converter is as follows: Pressing CD on the BS Ouverture starts the Beoplay V1 and the music is playing through it's speakers. So it works, at least with the Ouverture. I have quick start timers activated on the Beoplay V1, not sure if that makes any difference, but just for the full picture. I might be able to do some more testing later in the week with other music system, and also with a Beoplay M3 as the NL source to see if that works just as well.

I have Timers off, let me try changing that to see if it changes anything.

carolpa" target="_blank">https://forum.beoworld.org/forums/reply/69483/#post-69483">carolpa wrote:

info: BS3000 - BLC -  NL : start cd with button on BS3000 - NL source doesn't start BS9000 - BLC -  NL : start cd with button on BS9000 - NL source doesn't start BS7000 - BLC -  NL : start cd with button on BG CD7000 - NL source doesn't start this evening (but I'm not sure this was the same before I powered everything down this afternoon, but forgot the Beosystem 7000 and the T1611 (which I restarted later on)) I will do a proper reset lateron.

Did a reset on the Beosystem 7000. Nothing has changed. There is one difference though. The BLC's are primary linked to BS Core's (Shape's)

I have now tried the same test with my Beocenter 2. At first it did not work. I could start it from the Beoplay V1 and control it, but if I used the buttons on the BC2 it could not start the TV. Later I found out that was because I had speakers connected to the BC2. When I disconnected them I could start the Beoplay V1 TV by pressing the DISC button on the BC2. In my previously testing with the BS Ouverture there was speakers connected to that, but that did not seem to matter for this functionality, so there might be some differences in how different systems do this feature. I also checked settings on the TV again, and I am not sure if this is something I have set manually, or if it wast automatically set based on the settings in the NL/ML converter, so here goes (disclamer my menu language is Danish, so translation might be different with english menus): In the menu Product integration ->Connect to other products Product 1: Beolink Converter NL/ML Speakers to: Beolink Converter NL/ML If this has to be set manually it might make a difference in behaviour

carolpa" target="_blank">https://forum.beoworld.org/forums/reply/69548/#post-69548">carolpa wrote:

BS7000 – BLC –  NL : start cd with button on BG CD7000 – NL source doesn’t start this evening (but I’m not sure this was the same before I powered everything down this afternoon, but forgot the Beosystem 7000 and the T1611

Do you have a Powerlink cable between the Beomaster 7000 and the T1611 along with the 7 pin DIN cable? That is required for buttons on the music system to control connected Video Master in ML systems. And for your setup that might be the problem since this feature is from the ML world where it would activate the TV in the setup. But you connect to a music systems (the Core) in the NL world. Not sure if this has impact when the NL/ML converter is translating. I will try later to see if I can do the same with my Beoplay M3.
