Beomaster 4000 - extra components not documented

2 replies

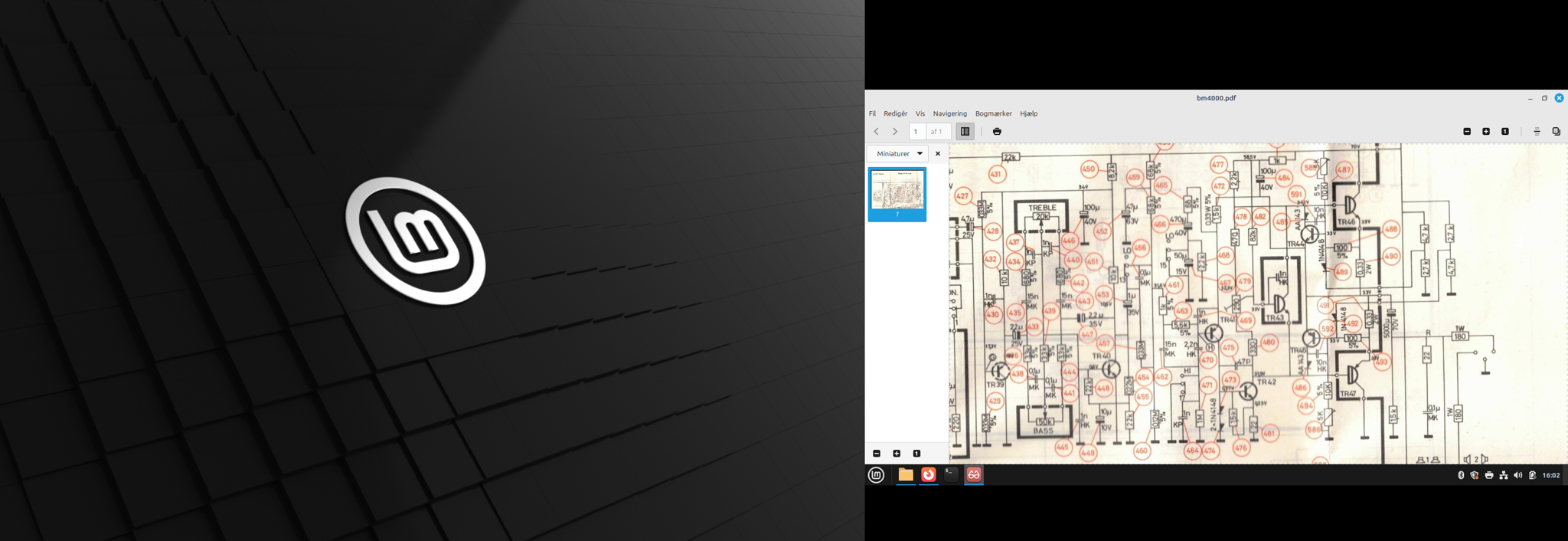

Hi Forum. I am recapping another Beomaster 4000, but this version has 2 extra trimmers in the output stage, and I cannot find any documentation stating how to adjust them. It seems that they may effect the center/symmetri voltage of the output stage. See attached picture, which I scanned from the in-lay schematics. Unfortunately is does not say anything about adjustments. The extra trimmers are position 585 and 586 (right channel). Anyone who has seen this version and knows the adjustment procedure?
Adjustment of potentiometer pos. 585 and 586 Connect oscilloscope to the speaker output Amplifier is fed 1 kHz sine, until clipping starts Capacitor 4.7uF is mounted across C-E of TR43 Resistor 190ohm 23Wa (part# 5107005) is mounted across C-E of TR46 Potentiometer 5Kohm pos 585 is adjusted until distortion on negative peak Resistor is moved to C-E of TR47 Potentiometer 5Kohm pos 586 is adjusted until distortion on positive peak Left channel is adjusted as above Martin
