Core Mk2 with IR eye - assign Beo4 buttons to sources

Tignum

Gold

995 posts

Posted February 14, 2024 at 10:53 GMT ? Edited May 4, 2024 at 19:49 GMT

Hello all, How can you assign (older) Beo4 buttons to the sources of a Core Mk2, when using an IR eye? I know how this assigning works with a BLC, but I cannot find such a possibility in the (B&O app) configuration pages of the Core. Or should I first connect the IR eye, for the Core to recognize it and ‘reveal’ the possibility? Can anyone explain how this is done? Regards, Johan

Location: Netherlands

My B&O Icons:

Tignum

Gold

995 posts

Posted February 14, 2024 at 23:08 GMT

#707591

I think I found the answer here: https://support.bang-olufsen.com/hc/en-us/articles/360041742571-How-do-I-activate-sources-using-BeoRemote-One-or-Beo4 A pity, I was hoping for the same flexibility as with a BLC. Regards, Johan

Location: Netherlands

My B&O Icons:

Tignum

Gold

995 posts

Posted February 15, 2024 at 10:41 GMT ? Edited February 15, 2024 at 10:41 GMT

#707597

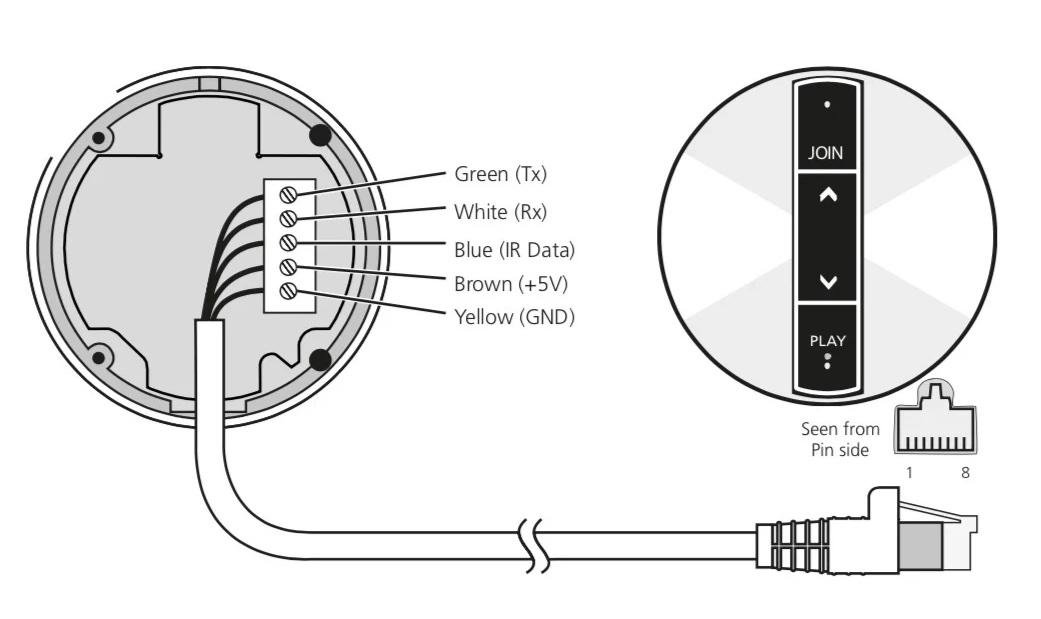

Hi DT79, There was a thread here: https://archivedforum2.beoworld.org/forums/t/43589.aspx stating the MkII has Type no. 3051. Join-Play version (8089119). The port to plug the IR eye in, can only be the DPL port I reckon? Regards, Johan

Location: Netherlands

My B&O Icons:

DT

DT79

Bronze

103 posts

Posted February 15, 2024 at 11:06 GMT

#707598

Thanks, I did see that one, but wasn’t sure if the ability to connect the IR eye was the only thing. If it is then I’ll happily just go for a Mk1 which seem to be a little cheaper and more available.

https://archivedforum2.beoworld.org/forums/t/43589.aspx stating the MkII has Type no. 3051. Login to view image Join-Play version (8089119). The port to plug the IR eye in, can only be the DPL port I reckon? Regards, Johan

DT

DT79

Bronze

103 posts

Posted February 15, 2024 at 21:58 GMT

#707623

I was trying to figure out the difference between the Mk1 and Mk2 Core and found this thread while searching. Hope it’s OK to ask some questions here, as remote control is part of it. I must say that the lack of clear and comprehensive information from B&O is shocking. If I have this right the Mk1 Core can only be controlled via the app or Beo Remote 1 (via Bluetooth); the Mk2 also allows IR control via a separate IR eye? Are there any other differences? I’m looking for a s/h Core and want to know whether I need to find a mk2 one or not.

Tignum

Gold

995 posts

Posted February 16, 2024 at 17:43 GMT ? Edited February 16, 2024 at 17:44 GMT

#707637

Hello, can someone from experience tell if the IR eye for the Core provides 2-way IR communication with the BeoRemote One? I expect the Core does this, seeing below chart at 'link sources'. I am curious to know if the IR eye does it too, when the Core is out of IR sight. Thanks, Johan

Location: Netherlands

My B&O Icons:

Millemis

Bronze

1330 posts

Posted February 16, 2024 at 20:38 GMT

#707639

The use of the Beo4 = ir is very limited compared to the use of a BROne. If you basicly use the Core for Radio or to join in from other sources, it will be fine. Also with Spotify Connect to pause/skip etc and volume it will do the job. Otherweise the BROne is the best choice…or the app. MM

Location: Flensborg————Danmark

Tignum

Gold

995 posts

Posted February 16, 2024 at 21:50 GMT

#707641

Hello MM, I agree the BeoRemote One is better for operating a Core. And the (standard, no BT) BR1 manual says that linked sources (in ‘my’ case from two BLCs) are visible in the source list of the remote. I am assuming they get there through 2 way IR then. I am seeking confirmation of that working with the Core and an IR eye, as the Core needs to be hidden away. Thanks! Johan

Location: Netherlands

My B&O Icons:

B3

B3OHACK3R

Bronze

157 posts

Posted February 16, 2024 at 22:03 GMT

#707642

Tignum

Gold

995 posts

Posted February 16, 2024 at 22:27 GMT

#707644

Hi B3OHACK3R, the idea is to hide the Core quite far, maybe 20m. I was hoping that the connected IR eye would allow full BR1 functionality, incl showing specifically named sources from two BLCs. It seems not. The setup will not be very complicated, and perhaps standard Beo4 source names will do (or can be renamed even). Login to view image
Location: Netherlands
My B&O Icons:
