Powelink RJ45 Pin Belegung

3 replies
MA
mafanni
Bronze
226 posts
Posted April 7, 2026 at 16:12 GMT
#690886
Hallo,   ich habe die Suche bemüht, konnte aber nichts finden. Hat jemand die Pin-Belegung für den RJ45 Stecker zu Powerlink?   Besten Dank, Martin
Tignum
Tignum
Gold
995 posts
Posted April 7, 2026 at 18:19 GMT
#718290

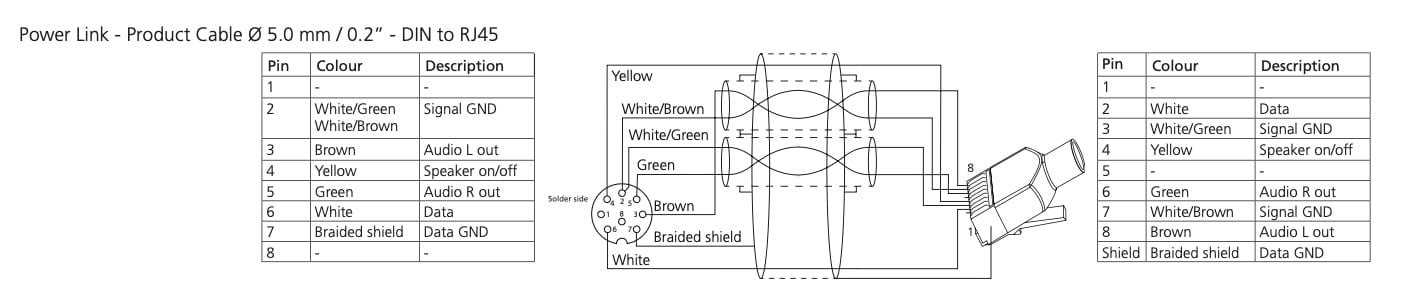

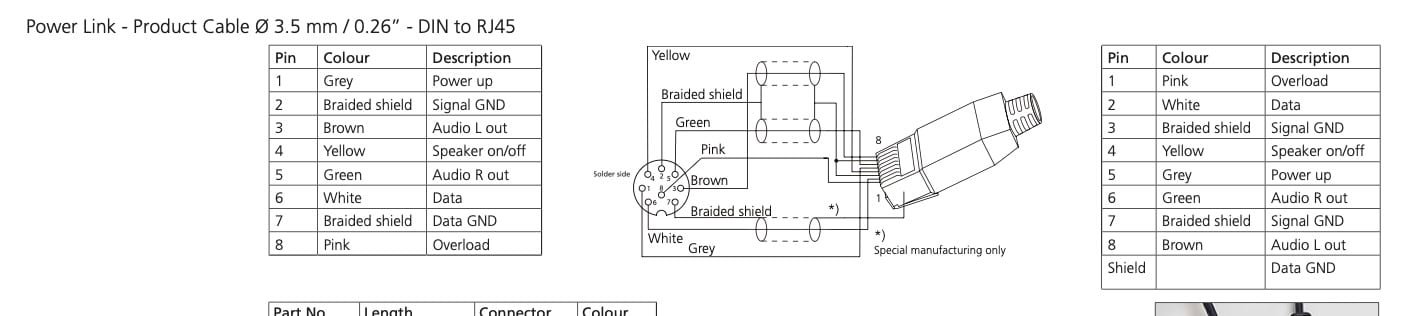

Hello Martin, These are from the BeoLink handbook:
The color scheme depends of course on what type of cable you have.
Hope it helps.
Regards,
Johan


Location: Netherlands

My B&O Icons:

Beoremote-Beo4.png Beoremote-Beo4.png
Beovision-10.png Beovision-10.png
Beosound-5.png Beosound-5.png
Beoremote-One.png Beoremote-One.png
Beoplay-H8i.png Beoplay-H8i.png
Beoplay-A1.png Beoplay-A1.png
Beomaster.png Beomaster.png
MA
mafanni
Bronze
226 posts
Posted April 8, 2026 at 15:15 GMT
#718295
Hi Johan, thanks again for your help.   Erik
